New 2025 Newmar Bay Star 3618 Motor Home Class A
Available to Order! Unit is NOT in Stock! Call to Order Yours Today!Newmar Bay Star Class A gas motorhome 3618 highlights:
- Rear Private Bedroom
- Shower Skylight
- Booth Dinette
- Swivel Seats
- Full Bathroom

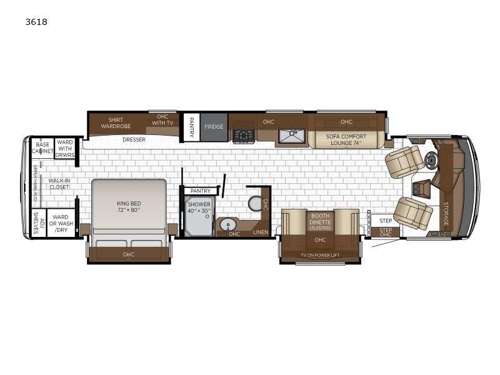

You will feel right at home in this motorhome with the rear private bedroom! Inside the bedroom you will find a king bed slide across from a dresser below a shirt wardrobe and a large walk-in closet with plenty of storage spaces, plus an area prepped to add an optional washer and dryer. The full wall slide provides added space, along with the two other slides throughout. You can easily prepare meals on the recessed three burner cooktop, or use the stainless steel convection microwave, and the pantry will be perfect for dry goods or snacks. This model includes a 74" visionary V2 tri-fold sofa and a comfy booth dinette (sleeper) for seating and sleeping space, plus there is a Samsung LED TV in the living room and bedroom so you can watch your favorite shows. You'll find storage space up front, plenty of overhead compartments, plus lit basement storage.
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque and heavy duty sway bars. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior décor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center!
2024 Info and Specs Shown. Please call us for more details.
Absolutely amazing and so kind! We have a hybrid travel trailer and we were getting tossed around traveling from the Denver area to Miles City Mt. During the trip we had a mishap with an hidden and illplaced clearance bar that resulted in roof damage and antenna damage. We called them from Douglas, Wy to see if they could at least install an anti-sway system. They were ready for us the minute we pulled - Lindsay
Stock# SEATONBS3618
Chassis: Ford F-53
Exterior Color: Dudley, Lenland, Somerset
Interior Color: Burma, Rimini, Townsend
Sleeps | 5 |
Slides | 3 |
Length | 36 ft 11 in |
Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in |
Int Height | 6 ft 8 in |
Interior Color | Burma, Rimini, Townsend |
Exterior Color | Dudley, Lenland, Somerset |
Hitch Weight | 5000 lbs |
GVWR | 26000 lbs |
Dry Weight | 22700 lbs |
Cargo Capacity | 3300 lbs |
Fresh Water Capacity | 75 gals |
Grey Water Capacity | 60 gals |
Black Water Capacity | 40 gals |
Furnace BTU | 35000 btu |
Generator | 5.5 kW Cummins Onan |
Fuel Type | Gas |
Engine | 7.3L V8 |
Chassis | Ford F-53 |
Horsepower | 350 hp |
Fuel Capacity | 80 gals |
Wheelbase | 242 in |
Available Beds | King |
Torque | 468 ft-lb |
Refrigerator Type | Norcold |
Refrigerator Size | 10 cu ft |
Convection Cooking | Yes |
Cooktop Burners | 3 |
Shower Size | 40" x 30" |
Number of Awnings | 1 |
Axle Weight Front | 9000 lbs |
Axle Weight Rear | 17500 lbs |
LP Tank Capacity | 25 gals |
Water Heater Capacity | 6 gal |
Water Heater Type | Gas/Electric |
AC BTU | 27000 btu |
TV Info | LR Samsung LED, BR Samsung LED |
Awning Info | Carefree Travel'r Power Side Awning w/Strip Lighting |
Gross Combined Weight | 30000 lbs |
Shower Type | Standard |
Electrical Service | 50 amp |
