New 2025 TM 16 Base Model Travel Trailer
Shop TM 16 Base Model For Sale
TM 16 Base Model Description

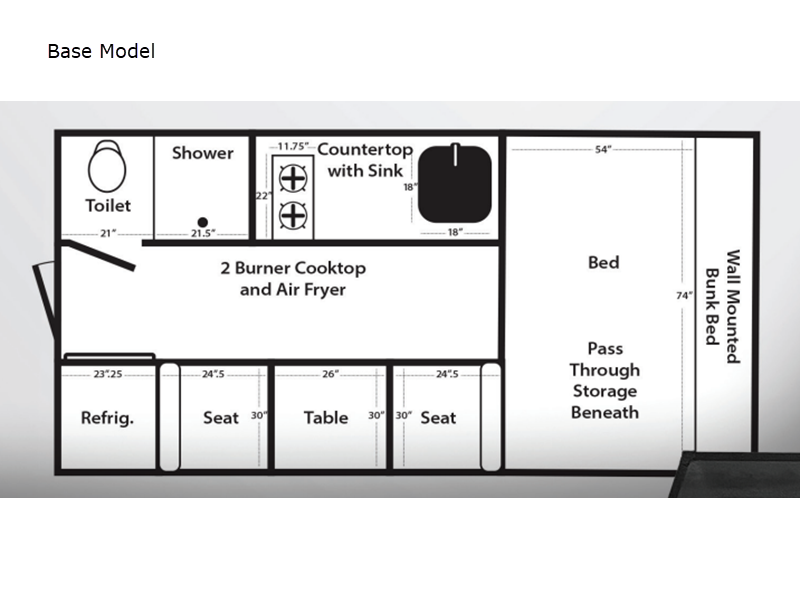

TrailManor TM 16 travel trailer Base Model highlights:
- Wet Bath
- Two Burner Cooktop
- Front Bed
- Pass-Through Storage
- 225.75.R15 Load Range E Tires
Camping trips just got a whole lot sweeter in this single axle travel trailer! You can comfortably sleep four between the front bed with a wall mounted bunk bed above plus the dinette with two seats. A two burner cooktop and an air fryer will let you make meals each day, and there is a 10.7 cu. ft. full-size Everchill 12V refrigerator to keep your cold items fresh. After you've made dinner and freshened up in the wet bath, head outdoor to relax under the patio awning!
The TM 16 travel trailer by TrailManor is easy to tow and even easier to love! There are self-adjusting brakes, a metal underbelly, and 2" laminated floor and walls for added strength. An outside shower also comes standard, along with solid flip-down steps, a 20 lb. LP tank, and solar prep if you want off-grid capability options. Inside, you'll find a Bluetooth power control module and a Bluetooth speaker, a 12V power outlet in the main living area, LED lights, and a Maxx air ceiling fan to keep fresh air moving. Additional options that can be added include an optional electric tongue jack and a wheel kit for the jack plus an optional back up camera for the option to make parking easier than ever!
TM 16 Base Model Specifications
| Sleeps | 4 |
| Length | 16 ft |
| Ext Width | 7 ft 6 in |
| Hitch Weight | 300 lbs |
| Dry Weight | 2560 lbs |
| Tire Size | 225/75/R15E |
| Furnace BTU | 20000 btu |
| Number Of Bunks | 1 |
| Refrigerator Type | 12V Everchill |
| Refrigerator Size | 10.7 cu ft |
| Cooktop Burners | 2 |
| Number of Awnings | 1 |
| Axle Weight | 3500 lbs |
| LP Tank Capacity | 20 lbs |
| Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric |
| AC BTU | 13500 btu |
| Axle Count | 1 |
| Number of LP Tanks | 1 |
| Shower Type | Wet/Bath Shower |
TM 16 Base Model Reviews
Similar Floorplans
Loading
ManuFacts
TrailManor was founded in 1983, but our story goes back much farther. Before the first TrailManor was shipped to a dealer, the design went through ten years of prototypes and testing. It was only after the innovative TrailManor design was thoroughly proven that it was made available to the public.
Our Founder, William J. Hulsey, has a Ph.D. in Metallurgical Engineering and many years of experience in developing high technology materials and products. He transferred this knowledge into the TrailManor design to produce a trailer that's light in weight, easy to tow, engineered to last, high in resale value, and fun to use from the moment you leave your driveway.
That's what you should expect from a travel trailer, and that's what you get with TrailManor.
In 2011, Bob Eickhoff (TrailManor's Western Sales Manager for many years) and his wife Cleo purchased TrailManor, and have continued the tradition of innovation and quality.
