New 2025 Phaeton 35 CH Motor Home Class A - Diesel

* The images displayed may represent all Phaeton models

Shop Phaeton 35 CH For Sale

Previous Inventory Unit
Next Inventory Unit

Phaeton 35 CH Description

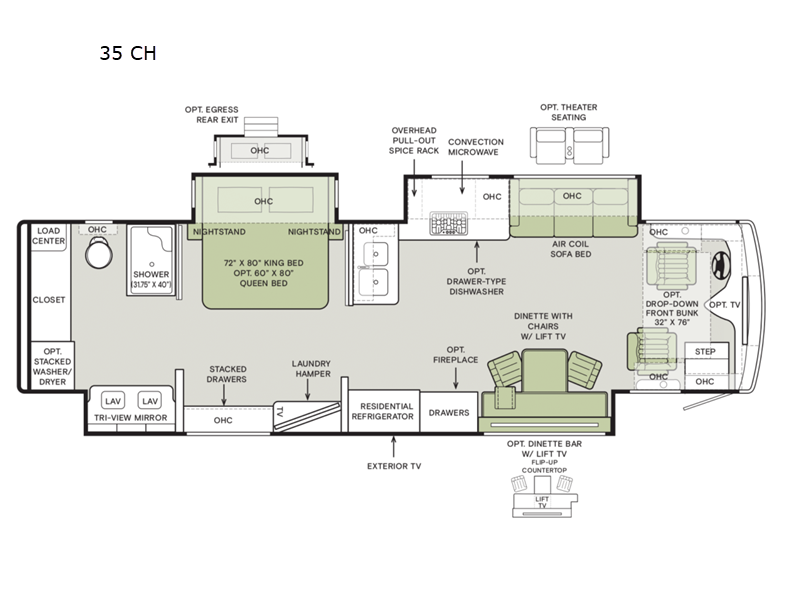

Tiffin Motorhomes Phaeton Class A diesel motorhome 35 CH highlights:

  • Full Rear Bathroom
  • King Bed
  • Dinette with Chairs
  • Exterior TV
  • Full-Wall Slide
  • Storage Drawers in Kitchen



Travel the country with this comfortable motorhome! The full rear bathroom will have you feeling right at home with the dual sink vanity that has a tri-view mirror, a shower with a seat, and a closet with has an area prepped to add an optional stacked washer and dryer. Get a good night's rest on the 72" x 80" king bed slide with nightstands on either side across from stacked drawers and a mounted bedroom TV. You will have everything you need to prepare delicious home cooked meals including a smart convection microwave with an air fryer, storage drawers for ingredients, and you can even add an optional drawer-type dishwasher to make clean up easier. The air coil sofa bed offers another comfortable sleeping space for a guest or two, plus you can add an optional drop-down front bunk for even more sleeping space. This model also includes a dinette with chairs and an optional fireplace if you want to make your space even more cozy!



Each one of these Tiffin Motorhomes Phaeton Class A diesel motorhomes offer high-end elegance at every turn! A PowerGlide XC raised rail rear engine diesel chassis will give you a smooth ride for every mile, and each coach comes with a Cummins L9 450 HP engine to power your journeys. There is a 10.0 kW Onan Quiet Diesel generator, three 15k BTU A/C units, and a Firefly integrations Eclipse module to keep you connected wherever you go. Outside, you'll appreciate the custom rock guard to protect your unit, along with full-body paint with four layers of clear coat and high-performance protection film on the front cap and select areas. A Girard power awning with LED lights also comes standard plus a fiberglass reinforced plastic basement floor, an exterior TV, and more. A few new features you are sure to enjoy are the standard exterior ladder, matte finish tile floor option, new Generation 12 paint schemes, Starlink roof prep, and more!

Phaeton 35 CH Specifications

Sleeps 4
Slides 3
Length 37 ft 9 in
Ext Width 8 ft 5 in
Ext Height 13 ft 3 in
Int Height 6 ft 11 in
Interior Color Capri, Tide Pool, Stallion
Exterior Color Gen 10, Gen 11; Bordeaux, Waterfall, Frosted Granite, Nasa, White Mahogany. Midnight Blue Edition
Hitch Weight 10000 lbs
GVWR 39660 lbs
Fresh Water Capacity 100 gals
Grey Water Capacity 100 gals
Black Water Capacity 55 gals
Tire Size 295/80R 22.5
Furnace BTU 50000 btu
Generator 10.0kW Onan Quiet Diesel
Fuel Type Diesel
Engine Cummins L9
Chassis Freightliner PowerGlide XC Raised Rail Rear
Horsepower 450 hp
Fuel Capacity 100 gals
Wheelbase 222 in
Available Beds King
Torque 1250 ft-lb
Refrigerator Type Stainless Steel Residential with French Doors and Bottom Freezer
Refrigerator Size 22 cu ft
Convection Cooking Yes
Shower Size 31.75" x 40"
Number of Awnings 2
Axle Weight Front 15660 lbs
Axle Weight Rear 24000 lbs
LP Tank Capacity 35.7 gals
Water Heater Type Truma AquaGo Comfort Instant
AC BTU 45000 btu
Basement Storage 131 cu. ft.
TV Info LR TV, BR Mounted TV, Ext. TV
Awning Info Girard Power Patio and Window
Washer/Dryer Available Yes
Gross Combined Weight 49660 lbs
Shower Type Shower w/Seat
Electrical Service 50 amp
