New 2025 Canyon Star 3947 Motor Home Class A - Diesel - Toy Hauler
Get answers to your questions about this RV
Shop Canyon Star 3947 For Sale
Canyon Star 3947 Description

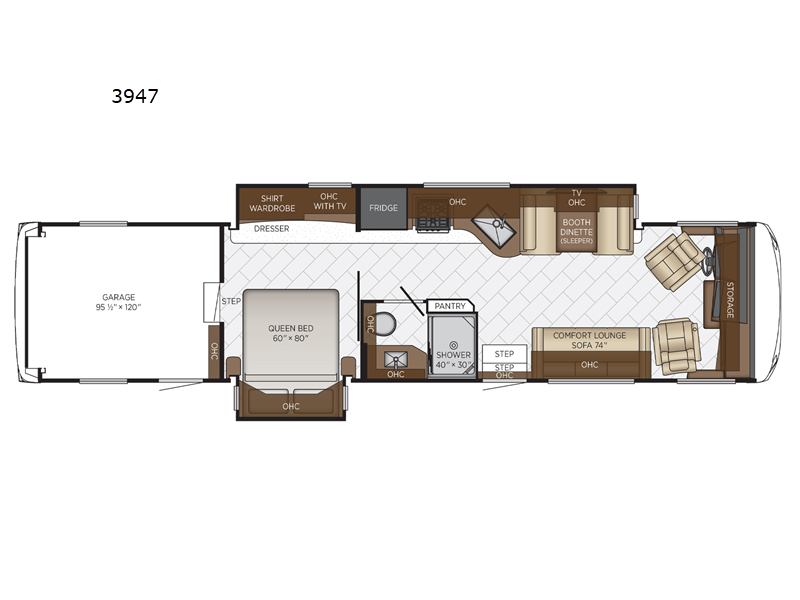

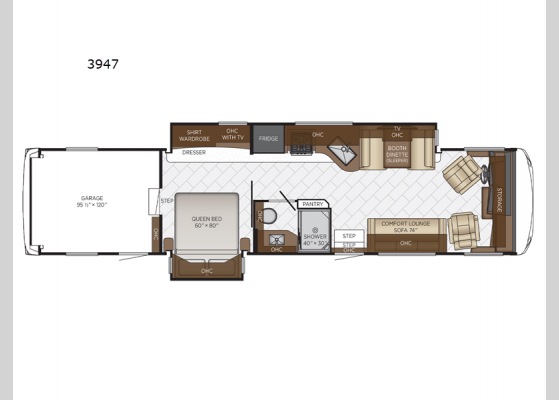

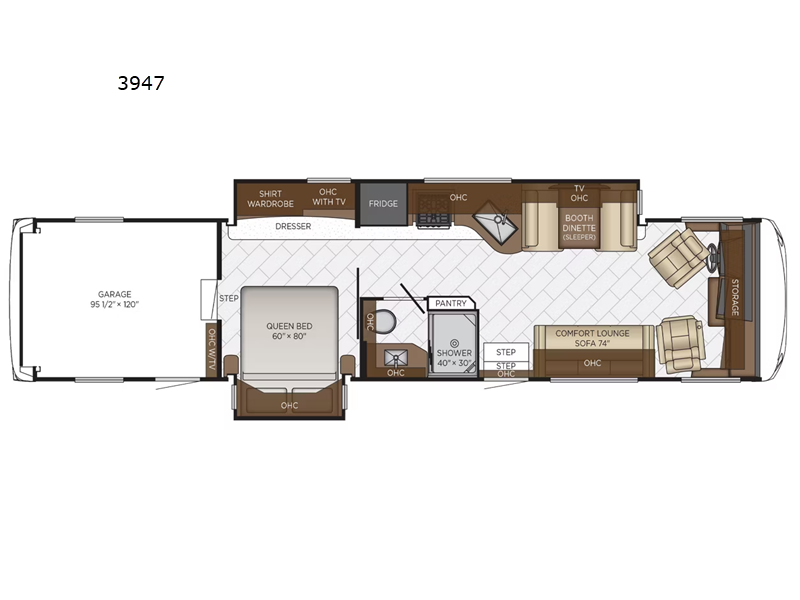

Newmar Canyon Star Class A diesel toy hauler motorhome 3947 highlights:
- 10' Garage with Rear Ramp Access
- Comfort Lounge Sofa
- Shirt Wardrobe
- Queen Bed Slide Out
- Booth Dinette
The Newmar Canyon Star Class A diesel toy hauler has room for plenty of toys! The 10' garage with rear ramp access is designed for ATV & normal clearance motorcycles, and can also be accessed by a side entrance door. You can organize your toys with the tie-down tracks and you won't have to worry about scuffs with the diamond tread rubber flooring. The living area has a comfort lounge sofa and a booth dinette which can both be converted to sleeping space, and the full-wall slide here will open up your whole coach. You'll sleep comfortably in the private bedroom which has a queen bed, wardrobe with a dresser, and an overhead console with a TV.
With any Canyon Star Class A diesel toy hauler motorhome by Newmar, you will enjoy a Freightliner front engine diesel chassis with 340HP to power your trips. The garage has so many features that will make your trip easier, like a fueling station, ramp door, assist handle, and even prep for an optional washer/dryer. There's also a rear hitch for towing your car. In the garage you can also add optional electric lift bunk beds or a pedestal table with seating if you need extra room for guests. Keep everything going with the four 12 volt house batteries, 1200 watt pure sine inverter, and a 10 watt solar panel to charge it all. There's also an 8 kW Cummins Onan Quiet Series Generator for your power needs. You'll appreciate the on demand water system, and you'll be extra comfortable with the propane gas furnace with ducted heat plus dash heater and air conditioner.
Canyon Star 3947 Specifications
Sleeps | 6 |
Slides | 2 |
Length | 39 ft 11 in |
Ext Width | 8 ft 6 in |
Ext Height | 12 ft 11 in |
Int Height | 7 ft |
Interior Color | Capilano, Excelsior, Sherbrooke |
Exterior Color | Captiva, Garnet, Windswept |
Hitch Weight | 6000 lbs |
GVWR | 32000 lbs |
Dry Weight | 25950 lbs |
Cargo Capacity | 6050 lbs |
Fresh Water Capacity | 75 gals |
Grey Water Capacity | 60 gals |
Black Water Capacity | 40 gals |
Tire Size | 275/80R 22.5 |
Furnace BTU | 35000 btu |
Generator | 8 kW Cummins Onan® Quiet Series |
Fuel Type | Diesel |
Engine | Cummins B6.7 |
Chassis | Freightliner |
Horsepower | 340 hp |
Fuel Capacity | 80 gals |
Wheelbase | 274 in |
Available Beds | Queen |
Torque | 700 ft-lb |
Refrigerator Type | Norcold |
Refrigerator Size | 10 cu ft |
Convection Cooking | Yes |
Cooktop Burners | 3 |
Shower Size | 40" x 30" |
Number of Awnings | 1 |
Axle Weight Front | 12000 lbs |
Axle Weight Rear | 20000 lbs |
Garage Size | 10 ft |
LP Tank Capacity | 25 gal. |
Water Heater Type | On Demand |
AC BTU | 27000 btu |
TV Info | LR Samsung LED TV, BR Samsung LED TV |
Awning Info | Apex Dual Stage Armless with Strip Lighting |
Washer/Dryer Available | Yes |
Gross Combined Weight | 33000 lbs |
Shower Type | Standard |
Electrical Service | 50 amp |
