New 2025 Bay Star 3826 Motor Home Class A
Get answers to your questions about this RV
Shop Bay Star 3826 For Sale
Bay Star 3826 Description

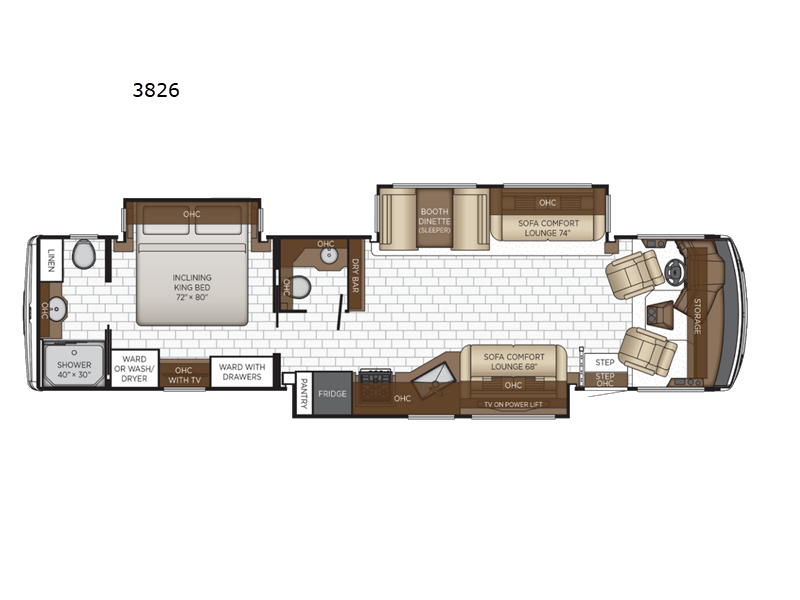

Newmar Bay Star Class A gas motorhome 3826 highlights:
- King Bed Slide Out
- Two Comfort Lounge Sofas
- Bath and Half
- Samsung LED TVs
- Pantry
Enjoy a private rear bedroom suite plus plenty of room for entertaining! Two comfort lounge sofas up front provide the perfect area for conversations, and the TV is stationed on a power lift so it can be hidden away when not in use. The booth dinette can be converted to additional sleeping space, if needed, and the adjacent dry bar is fantastic for parties. The bedroom features a king bed with an incline feature for extra comfort. There's plenty of storage space, including a wardrobe with drawers, overhead console storage, and a second wardrobe that can be outfitted with an optional washer/dryer. The full bath at the rear includes a 40" x 30" shower plus a linen closet for even more storage. And there's a half bath for extra convenience!
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl plank flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered!
Bay Star 3826 Specifications
Sleeps | 5 |
Slides | 3 |
Length | 38 ft 11 in |
Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in |
Int Height | 7 ft |
Interior Color | Arlow, Stowe, Vista |
Exterior Color | Cardinal, Granite, Harvest |
Hitch Weight | 5000 lbs |
GVWR | 26000 lbs |
Dry Weight | 22850 lbs |
Cargo Capacity | 3150 lbs |
Fresh Water Capacity | 75 gals |
Grey Water Capacity | 60 gals |
Black Water Capacity | 92 gals |
Furnace BTU | 35000 btu |
Generator | 5.5 kW Onan |
Fuel Type | Gas |
Engine | 7.3L V8 |
Chassis | Ford F-53 |
Horsepower | 350 hp |
Fuel Capacity | 80 gals |
Wheelbase | 254 in |
Available Beds | King |
Torque | 468 ft-lb |
Refrigerator Type | Norcold |
Refrigerator Size | 10 cu ft |
Convection Cooking | Yes |
Cooktop Burners | 3 |
Shower Size | 40" x 30" |
Number of Awnings | 1 |
Axle Weight Front | 9000 lbs |
Axle Weight Rear | 17500 lbs |
LP Tank Capacity | 25 gals |
Water Heater Capacity | 6 gal |
Water Heater Type | Gas/Electric |
AC BTU | 27000 btu |
TV Info | LR Samsung LED TV Lift, BR Samsung LED TV |
Awning Info | Carefree Travel'R Side Awning with Strip Lighting |
Washer/Dryer Available | Yes |
Gross Combined Weight | 30000 lbs |
Shower Type | Standard |
Electrical Service | 50 amp |
