New 2025 Bay Star 3629 Motor Home Class A

* The images displayed may represent all Bay Star models

Shop Bay Star 3629 For Sale

Previous Inventory Unit
Next Inventory Unit

Bay Star 3629 Description

Newmar Bay Star Class A gas motorhome 3629 highlights:

  • King Bed Slide Out
  • Comfort Lounge Sofa
  • Bath and Half
  • Samsung LED TVs
  • Bedroom Dresser

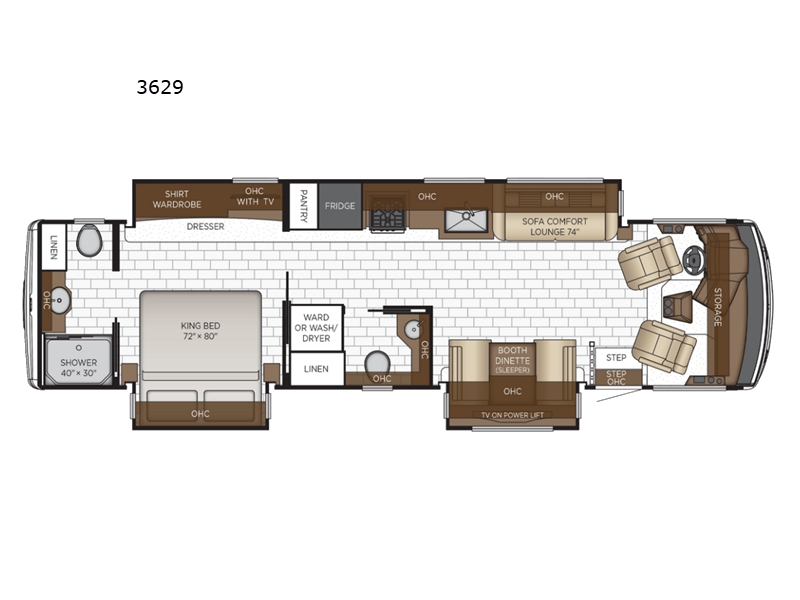

This coach is the perfect companion to take across states since it will feel just like home. There is a full-wall slide that will open up your living space, plus two additional slides so you won't feel confined. You will love the master bedroom and the full rear bath that includes a linen closet for clean towels, and there is a mid-coach half bath with an area for an optional Splendide stacked washer and dryer. The chef of your group will have a 30" convection microwave and a three burner cooktop to prepare meals each day, and there is a booth dinette (sleeper) where you can all dine together. You might want to relax on the sofa comfort lounge after dinner and watch a movie on the TV on power lift!



Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl plank flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered!

Bay Star 3629 Specifications

Sleeps 5
Slides 3
Length 36 ft 11 in
Ext Width 8 ft 6 in
Ext Height 12 ft 10 in
Int Height 7 ft
Interior Color Arlow, Stowe, Vista
Exterior Color Cardinal, Granite, Harvest
Hitch Weight 5000 lbs
GVWR 26000 lbs
Dry Weight 22700 lbs
Cargo Capacity 3300 lbs
Fresh Water Capacity 75 gals
Grey Water Capacity 60 gals
Black Water Capacity 92 gals
Furnace BTU 35000 btu
Generator 5.5 kW Onan
Fuel Type Gas
Engine 7.3L V8
Chassis Ford F-53
Horsepower 350 hp
Fuel Capacity 80 gals
Wheelbase 242 in
Available Beds King
Torque 468 ft-lb
Refrigerator Type Norcold
Refrigerator Size 10 cu ft
Convection Cooking Yes
Cooktop Burners 3
Shower Size 40" x 30"
Number of Awnings 1
Axle Weight Front 9000 lbs
Axle Weight Rear 17500 lbs
LP Tank Capacity 25 gals
Water Heater Capacity 6 gal
Water Heater Type Gas/Electric
AC BTU 27000 btu
TV Info LR Samsung LED TV Lift, BR Samsung LED TV
Awning Info Carefree Travel'R Side Awning with Strip Lighting
Washer/Dryer Available Yes
Gross Combined Weight 30000 lbs
Shower Type Standard
Electrical Service 50 amp
