New 2025 Bay Star 3016 Motor Home Class A
Shop Bay Star 3016 For Sale
Bay Star 3016 Description

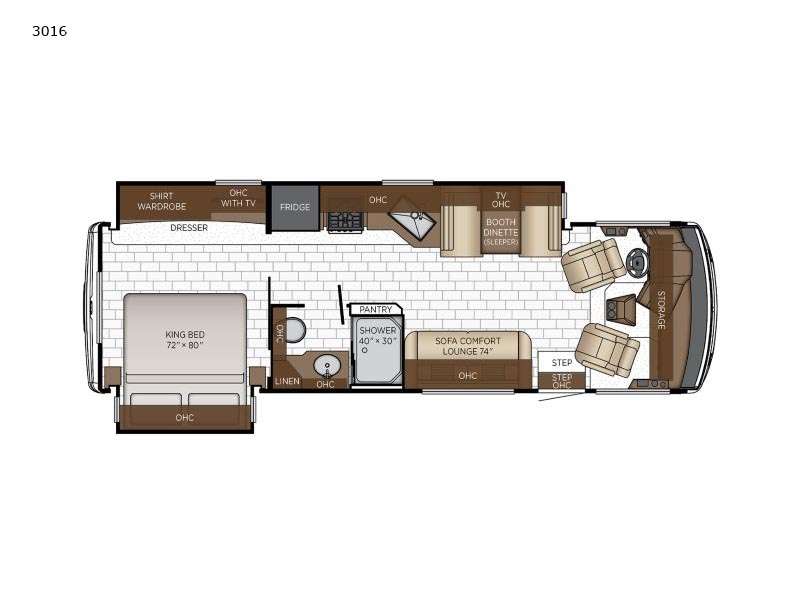

Newmar Bay Star Class A gas motorhome 3016 highlights:
- Full-Wall Slide
- Shower Skylight
- Booth Dinette
- Swivel Seats
- Bedroom Shirt Wardrobe
There is much to love about this motorhome! The full-wall slide provides added space, along with the king bed slide out in the rear private bedroom. You can easily prepare meals on the three burner cooktop, or use the stainless steel convection microwave, and the pantry will be perfect for dry goods or snacks. This model includes a 74" sofa comfort lounge and a booth dinette (sleeper) for seating and sleeping space, plus there is a Samsung LED TV in the living room and bedroom so you can watch your favorite shows. You'll find storage space up front, plenty of overhead compartments, plus lit basement storage.
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl plank flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered!
Bay Star 3016 Specifications
Sleeps | 6 |
Slides | 2 |
Length | 30 ft 11 in |
Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in |
Int Height | 7 ft |
Interior Color | Arlow, Stowe, Vista |
Exterior Color | Cardinal, Granite, Harvest |
Hitch Weight | 5000 lbs |
GVWR | 24000 lbs |
Dry Weight | 20050 lbs |
Cargo Capacity | 3950 lbs |
Fresh Water Capacity | 75 gals |
Grey Water Capacity | 60 gals |
Black Water Capacity | 40 gals |
Furnace BTU | 35000 btu |
Generator | 5.5 kW Onan |
Fuel Type | Gas |
Engine | 7.3L V8 |
Chassis | Ford F-53 |
Horsepower | 350 hp |
Fuel Capacity | 80 gals |
Wheelbase | 210 in |
Available Beds | King |
Torque | 468 ft-lb |
Refrigerator Type | Norcold |
Refrigerator Size | 10 cu ft |
Convection Cooking | Yes |
Cooktop Burners | 3 |
Shower Size | 40" x 30" |
Number of Awnings | 1 |
Axle Weight Front | 9000 lbs |
Axle Weight Rear | 15500 lbs |
LP Tank Capacity | 25 gals |
Water Heater Capacity | 6 gal |
Water Heater Type | Gas/Electric |
AC BTU | 27000 btu |
TV Info | LR Samsung LED, BR Samsung LED |
Awning Info | Carefree Travel'r Power Side Awning w/Strip Lighting |
Gross Combined Weight | 30000 lbs |
Shower Type | Standard |
Electrical Service | 50 amp |
