New 2025 Redhawk SE 22AF Motor Home Class C

* The images displayed may represent all Redhawk SE models

Shop Redhawk SE 22AF For Sale

Previous Inventory Unit
Next Inventory Unit

Redhawk SE 22AF Description

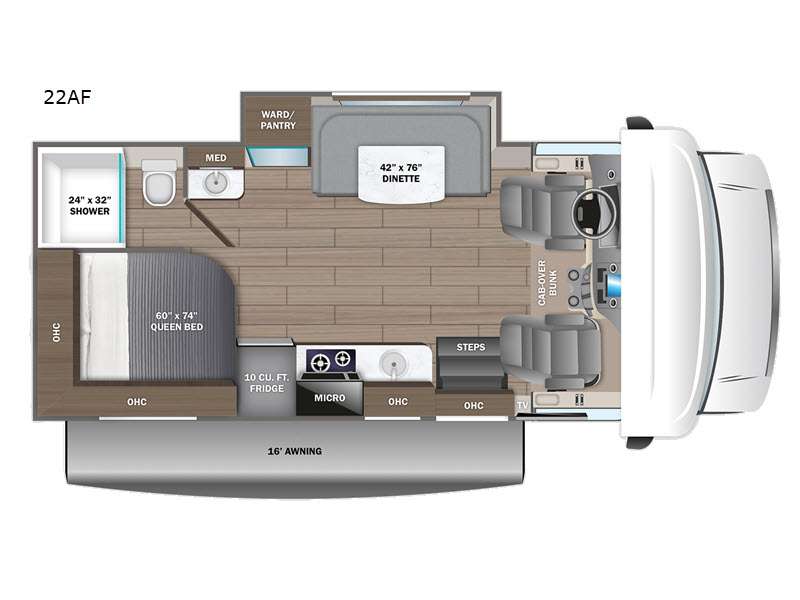

Jayco Redhawk SE Class C gas motorhome 22AF highlights:

  • Bunk Over Cab
  • U-Shaped Dinette
  • 60" x 74" Queen Bed
  • 10 Cu. Ft. 12V Refrigerator
  • Electronic Stability Control
  • Ford Chassis



Your small crew will love traveling in this motorhome! Everyone will enjoy a good night's rest between the queen bed, the bunk over cab, and even the 42" x 76" U-shaped dinette once converted. The rear corner bathroom has a 24" x 32" shower and toilet together with a vanity sink just outside. You can prepare your best meals with the two burner cooktop, store any leftovers in the 10 cu. ft. 12V refrigerator, and clean up in a snap with the stainless steel sink, plus there is a convection microwave oven for those nights when you don't feel like cooking!



Experience easy living in any one of these Jayco Redhawk SE Class C gas motorhomes! They are built with a Stronghold VBL lamination which is the lightest and strongest construction in the RV industry. The one-piece seamless front cap which helps to resist wear and tear, the Ford E-350 chassis, and the 7.3L V8 325 HP engine shows these units are built to last for years to come. The mandatory Customer Value package includes an electric patio awning to protect you rain or shine, heated holding tanks with 12V pads, and a backup camera to make parking and maneuvering easier. You will also love your options that include automatic hydraulic leveling jacks and an optional 200W solar panel with a dual controller and second house battery for off-grid capabilities!



Redhawk SE 22AF Specifications

Sleeps 5
Slides 1
Length 24 ft 8 in
Ext Width 8 ft 4 in
Ext Height 11 ft 6 in
Int Height 7 ft
Interior Color Ashbrook
Exterior Color Standard Graphics
Hitch Weight 5000 lbs
GVWR 12500 lbs
Fresh Water Capacity 44 gals
Grey Water Capacity 40 gals
Black Water Capacity 32 gals
Tire Size LT225/75R16
Furnace BTU 30000 btu
Generator 4,000 watt
Fuel Type Gasoline
Engine 7.3L V8
Chassis Ford E-350
Horsepower 325 hp
Fuel Capacity 55 gals
Wheelbase 158 in
Number Of Bunks 1
Available Beds RV Queen
Torque 450 ft-lb
Refrigerator Type 12V
Refrigerator Size 10 cu ft
Convection Cooking Yes
Cooktop Burners 2
Shower Size 24" x 32"
Number of Awnings 1
LP Tank Capacity 12.2 gals
Water Heater Capacity 6 gal
Water Heater Type Gas/Electric DSI
AC BTU 13500 btu
TV Info LED HD Smart TV
Awning Info 16' Electric
Gross Combined Weight 18500 lbs
Shower Type Standard
Electrical Service 30 amp
