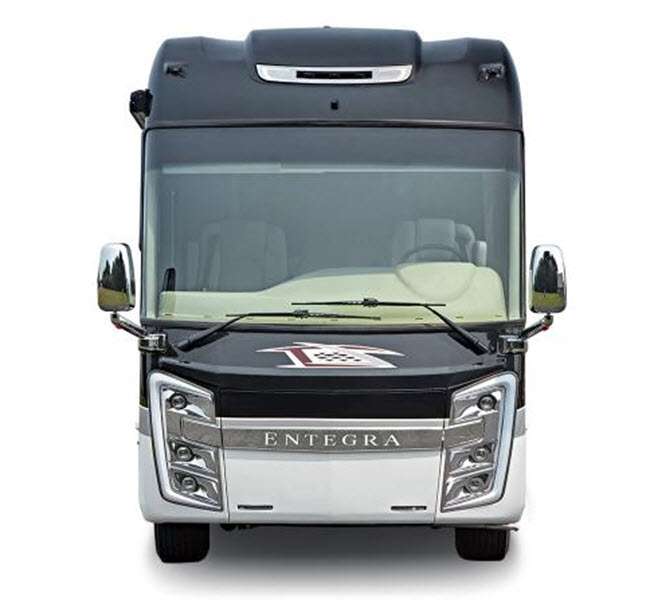

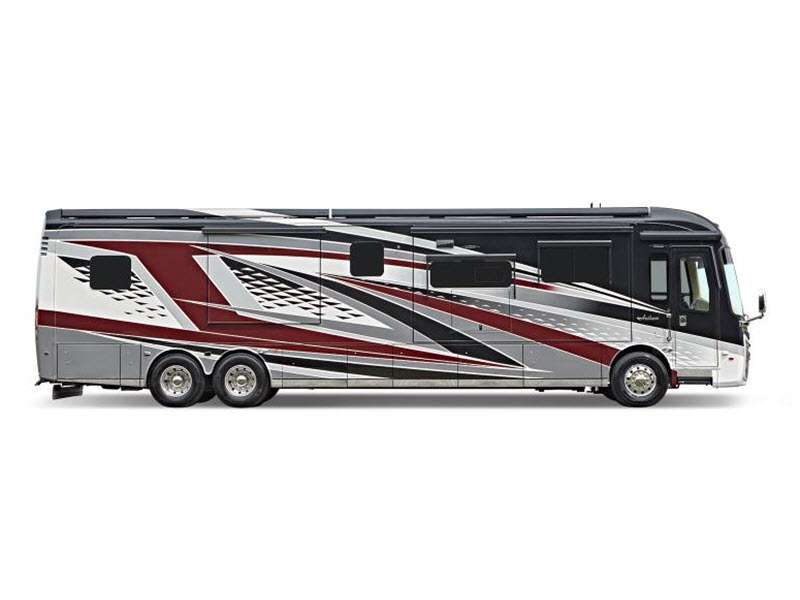

Entegra Coach Anthem Motor Home Class A - Diesel

Standard Features (2025)

Chassis

• Spartan® K2 raised-rail chassis
• Cummins® L9 turbocharged 450 HP engine with 1,250 lb. ft. torque at 1,400 RPM
• Allison® 3,000 MH 6-speed transmission
• Side-mounted, parallel-airflow radiator
• 170-amp alternator
• 1,000W engine block heater
• Three-stage engine brake
• Meritor® front axle with independent front suspension, integrated anti-sway bar and custom-tuned Koni® shocks- 20,000 lb. rating (17,000 on 37K)
• Meritor® rear axle - 20,000 lb. rating (N/A 37K); Hendrickson® rear axle - 24,000 lb. rating (37K)
• Tag axle with one-touch manual air dump - 12,000 lb. rating (N/A 37K)
• ABS disc brakes on front axle, drum brakes on drive and tag axle
• 4.88 rear axle ratio
• Michelin® XZA 365/70R 22.5 in. tires (front) and XZA 315/80R 22.5 in. tires (rear)
• Tire pressure monitoring system (TPMS) with temperature monitoring
• Automatic traction control
• Equalizer™ hydraulic automatic coach leveling
• Valid™ Truline air leveling system with auxiliary air compressor
• Remote air connection
• (2) 12V chassis batteries
• 150 gal. fuel tank with dual fills
• 15 gal. DEF tank with dual fills (single fill on 44R)
• Spartan® Safehaul tow vehicle air brake system
• 15,000 lb. hitch with 7-pin plug

Construction

• Roof: 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
• Walls: 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
• Floor: 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
• Frame: X-Bridge™ bracing welded into chassis frame
• Slideouts: Entegra-exclusive Relia-Torque flush-mounted 12V slideout system

Heat, AC, Water & Power

• Aqua-Hot® heated basement storage
• Onan® 10,000W diesel generator, with automatic start, on powered slide-out tray
• (4) L16 AGM batteries (6V/390 amp hrs. ea.)
• (2) 200W solar panels
• 50 amp power cord on electric powered reel
• Smart automatic transfer switch with surge protection
• (3) 15,000 BTU A/C units with heat pumps and condensation drain system (2 units on 37K)
• Aqua-Hot® 450D hydronic water and heating system with in-floor heat throughout and engine preheat
• Sani-Con® Macerator holding tank dump system with manual gate valves, manual backup
• Black tank flush; Grey tank flush
• Tilt tank dump
• City and tank water filtration system
• Hot and cold water hook-up in front cap area with 30 ft. quick-disconnect hose
• Water hose with electric reel
• Victron 3,000W Pure Sine inverter with LED Screen
• Water Softener prep in driver-side compartment

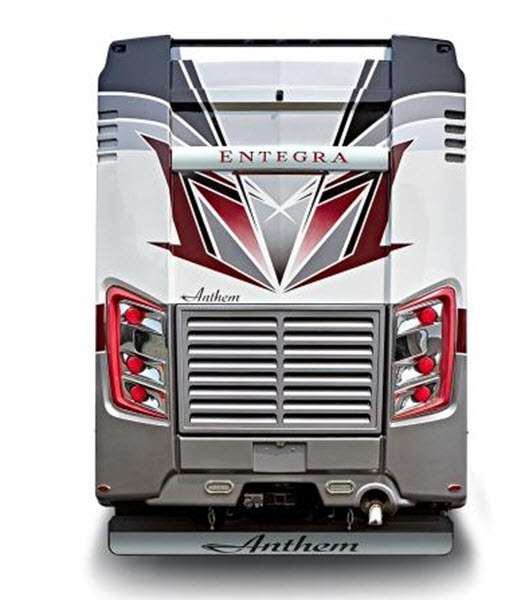

Exterior

• Insulated front and rear caps (R-240
• Heated exterior utility center with 5 in. LED SeeLevel tank monitoring panel
• Premier Bus Armor 8 in. stainless steel trim
• Power rear engine door with manual override
• Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
• Girard® power entrance door awning with LED lights
• Girard® Ultra slide out awnings
• Girard® Ultra power window awnings
• Frameless, dual-pane, tinted, safety-glass windows
• Diamond Shield front protective film mask
• 43 in. Samsung® QLED 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
• Blind-spot monitoring indicators in chrome, heated, remote-control side-view mirrors
• Lit grab handle with doorbell and keypad system for keyless entry
• Automatic LED low beam headlights
• Halogen fog lights
• Automatic daytime running lights
• LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
• LED accent lights under passenger slide out rooms
• LED-lit chrome clearance accent light
• Porch light and motion sensor security lights
• Mud flap with chrome “Anthem” nameplate
• Starlink satellite internet system
• Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
• Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
• Winegard® Rayzar Automatic powered TV antenna
• Winegard® WIFI Ranger™ Wi-Fi extender
• (2) power slideout basement storage trays (single tray on 37K)
• 2.8 cu. ft. exterior refrigerator/freezer on slideout tray (N/A 37K)
• Push-button, power-unlatching baggage doors with LED indicator light
• Sikkens custom full-body paint
• Removable screen on entry door

Cockpit

• Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
• Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
• Delta Mobile Systems® aiDARS™ 1X active 360° surround view system with 14 smart radar sensors and 6 HD cameras displayed on digital dash screen
• Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control, house mode whole-coach audio distribution and integrated VegaTouch coach control
• 4.3 in. infotainment control touchscreen in passenger console
• E-Z Steer™ adjustable power steering assist
• Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
• Power tilt and telescoping steering column
• JBL® premium audio 11-speaker sound system with amplifier, speakers and DVC subwoofer
• All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
• Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
• Heated leather driver and passenger seats with powered 6-way adjustment, lumbar, recline and footrest functions
• Powered flush stepwell cover
• Powered adjustable brake and accelerator pedals
• Powered front sun visors and privacy shades
• Collision avoidance system with collision warning, adaptive cruise control and electronic stability control

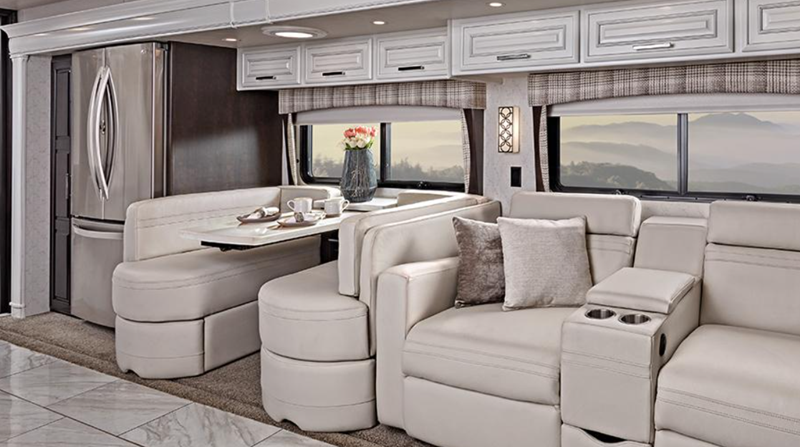

Interior

• LED-lit fireplace with 5,000 BTU heating element (44B, 44Z)
• 32 in. Samsung® QLED 4K UHD Smart TV in front overhead
• Firefly multiplex system with 10 in. VegaTouch touchscreen, for complete integration of coach controls, with remote monitoring and control (mobile app available)
• 50” Samsung® QLED 4K UHD Smart TV
• Spyder 3.5 in. touchscreen switches throughout
• Bose® sound bar with subwoofer and universal remote control
• Sony® Blu-ray™ player
• Premium leather Crown Compass furniture
• Hand-laid porcelain tiled floors
• LED interior lighting
• Decorative ceiling feature with integrated accent lighting
• Powered solar day and blackout night shades
• Portable Shark vacuum cleaner
• Aire-Secure™ travel locks for all pocket doors
• Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)
• Bunks with industry-exclusive 300 lb. capacity each (44R)

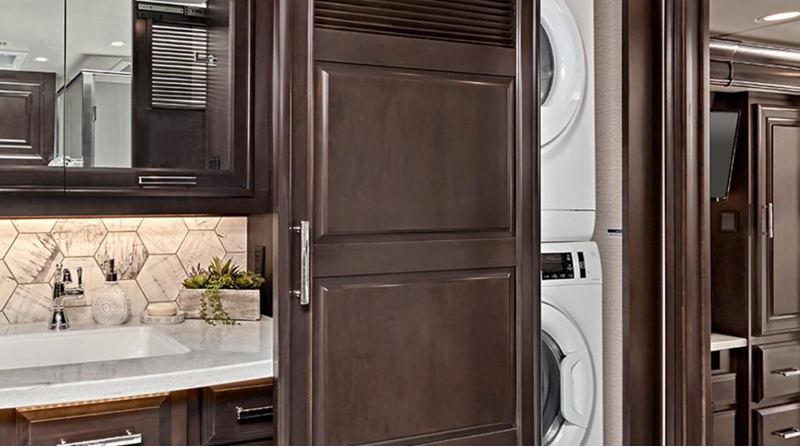

• Splendide stackable washer and dryer

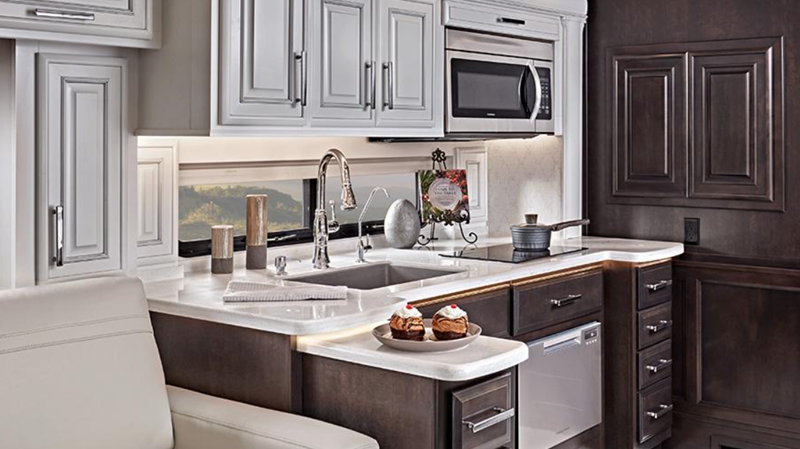

Kitchen

• Window with push out lever operation and screen
• Stainless steel residential refrigerator
• Induction cooktop with matching wood cover
• 1.9 cu. ft. convection microwave oven
• Fisher & Paykel dishwasher (optional on 37K)
• Solid-surface countertops with dimmable LED accent lighting
• Filtered water dispenser at kitchen sink
• Maxxair® power vent exhaust fan with intake and touch screen control
• Large, deep drawer for waste basket with easy access trash chute (trash chute not available in 44F, 44R)
• Pantry with pull-out shelves; Slide-out storage tray(s) in overhead cabinet
• Blanco single-bowl granite sink

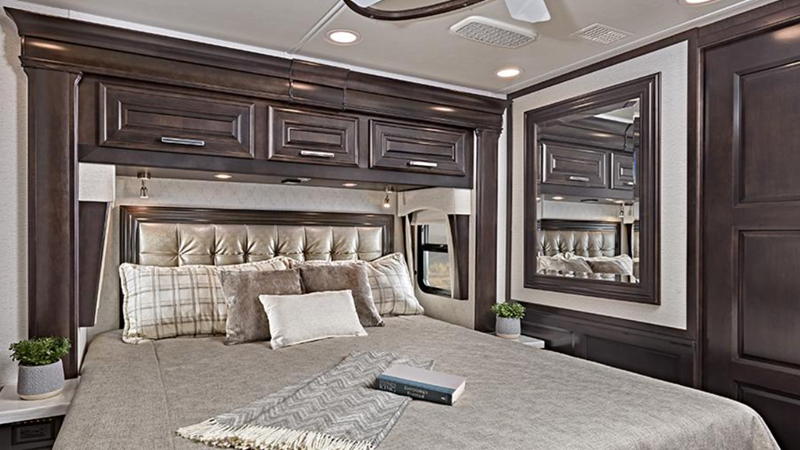

Bedroom

• Personal Comfort® A5 King-size mattress

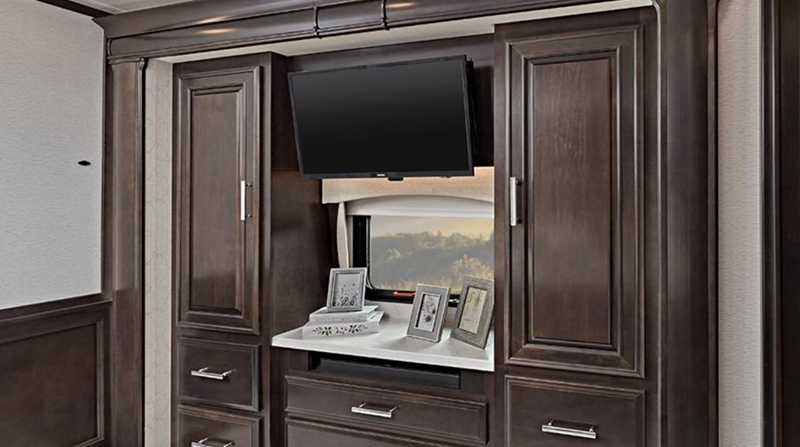

• 32 in. Samsung® LED 4K UHD Smart TV
• Bose® sound bar with universal remote control
• Sony® Blu-ray™ player
• Ceiling fan
• Nightstands with solid-surface tops
• Large cedar-lined wardrobe

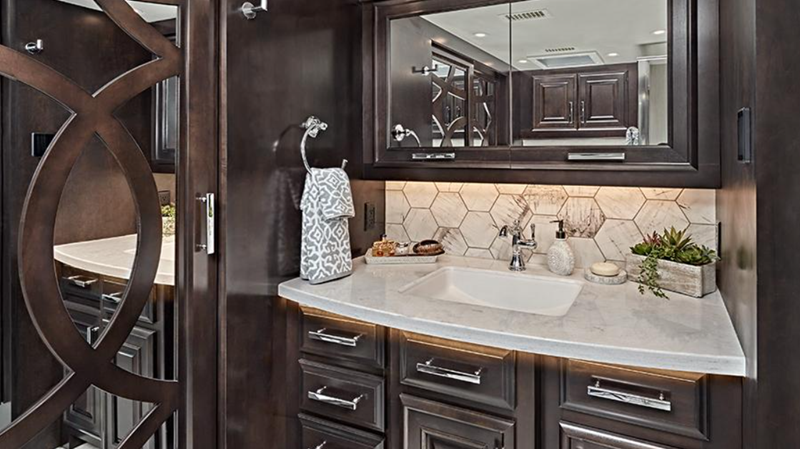

Bathroom

• Solid-surface countertops with integrated sink and dimmable LED accent lighting

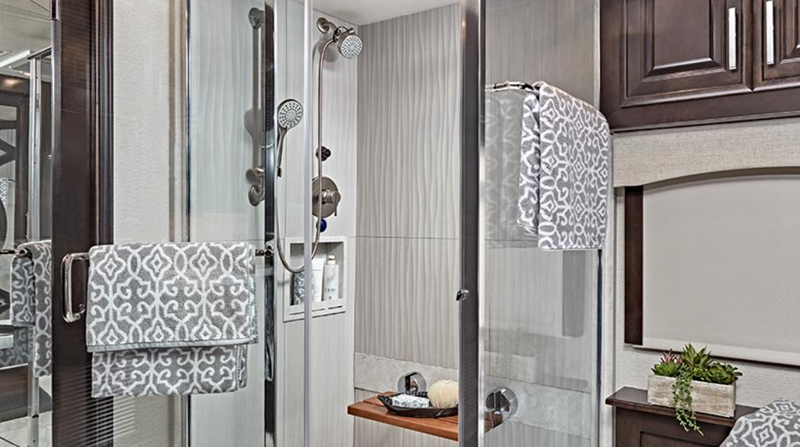

• Porcelain tile shower with skylight and clear glass shower door
• Teakwood shower seat
• Fixed shower head and separate hand-held spray wand
• Aqua View SHOWERMI$ER™ water saving system
• Thetford® macerator toilet in main bath; Thetford® macerator toilet in mid bath (44D, 44R, 44W); Thetford® toilet in mid bath (44B)
• Maxxair® Deluxe power exhaust vent fan with intake

Safety

• Carbon monoxide detector
• Smoke alarm
• Storage safe

Options

• Theater seating with power recliners and fixed center console (44R)
• 100 in. hide-a-bed sofa ILO 100" power reclining 3-cushion sofa (44B, 44Z)
• Dinette booth ILO free-standing table and chairs (44B, 44D, 44W, 44Z)
• Fireplace/TV/entertainment center and work station IPO sofa (44D, 44W only)
• Sleepmade memory foam mattress
• 12.5K generator ILO 10K
• Winegard® in-motion satellite dome ILO Winegard® TRAV’LER
• Living Room and Bathroom Area Rugs
• Cabinet with two drawers ILO dishwasher
• Wood headboard
• Canadian standards (CSA)
• Hide-a-bed sofa and standard sofa ILO power theater seating and hide-a-bed sofa (44D, 44W)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
