New 2025 isata 3 24FW Motor Home Class C - Diesel

* The images displayed may represent all isata 3 models

Shop isata 3 24FW For Sale

Previous Inventory Unit
Next Inventory Unit

isata 3 24FW Description

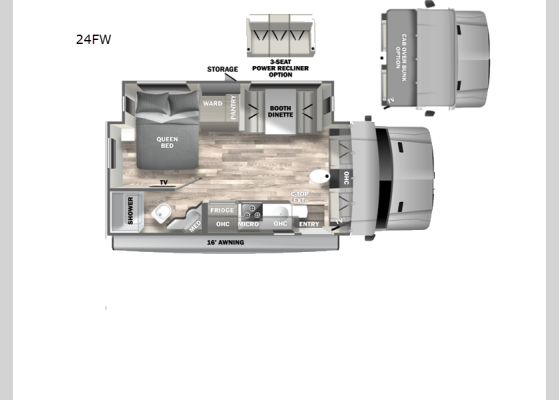

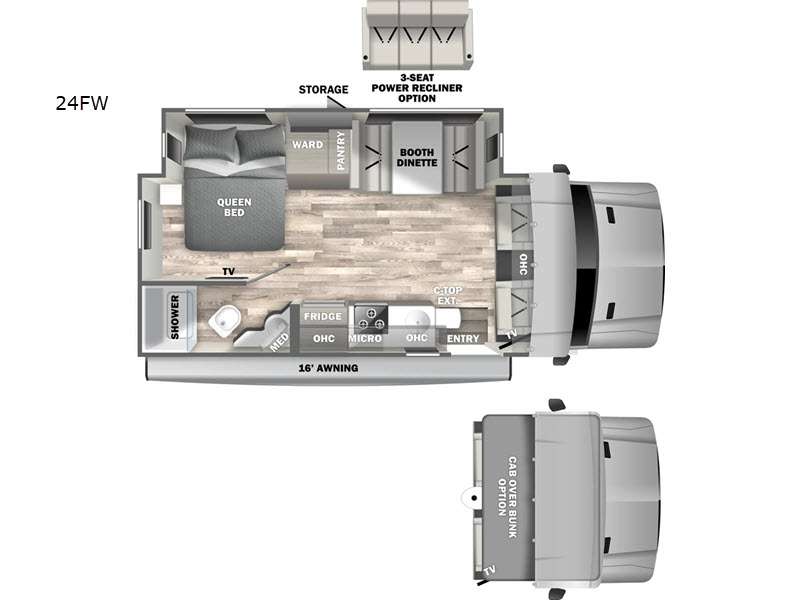

Dynamax isata 3 Class C diesel motorhome 24FW highlights:

  • Queen Bed
  • Booth Dinette
  • Rear Corner Bathroom
  • Exterior Speakers



Take this motorhome on your greatest adventures yet! Start each morning feeling well rested after sleeping on the corner queen bed then head to the rear corner bathroom to freshen up in the shower with an Oxygenics body spa RV shower head and a skylight above for added headroom and natural lighting. Now that you're ready for the day, you can grab some eggs from the 8 cu. ft. two-door compressor-driven refrigerator and fry them up on the three burner cooktop, then enjoy them at the booth dinette. The kitchen also has a countertop extension for more meal prepping space and a convection microwave. This unit also includes a living room 32" LED Smart TV and a 32" LED smart TV across from the bed. You could even switch things up by replacing the booth dinette with an optional 3-seat power recliner, and adding a cab over bunk option!



Each one of these Dynamax isata 3 Class C diesel motorhomes were designed to last for years of fun with composite exterior fiberglass with no exterior wood,  aluminum-framed roof trusses, and composite flooring substrate. The 2.0L l-4 turbo diesel engine will power your adventures, and the Mercedes-Benz Sprinter chassis provides a durable foundation. There is an MBUX 10.25" infotainment system and a quad-view camera system that will let the driver navigate the open road like a pro, and the added safety features are sure to bring you peace of mind. Outside, you'll be wowed by the custom full-body paint package with front-end Diamond Shield paint protection, plus there are exterior speakers, an armless patio awning with LED lights, and seamless rotocast storage compartments for your gear! Each model also includes many interior comforts to make you feel right at home, like the premium vinyl flooring throughout, hardwood craftsman-style cabinetry, solid surface countertops with LED edge lighting and backsplash, and the list goes on!

isata 3 24FW Specifications

Sleeps 3
Slides 1
Length 24 ft 7 in
Ext Width 7 ft 10 in
Ext Height 11 ft 5 in
Int Height 6 ft 9 in
Interior Color Desert, Milano
Exterior Color Full Body Paint; Admiral Blue, Granite, Khaki, Magnetic, Merlot
Hitch Weight 5000 lbs
GVWR 11030 lbs
Fresh Water Capacity 35 gals
Grey Water Capacity 32 gals
Black Water Capacity 32 gals
Tire Size 16"
Furnace BTU 20000 btu
Generator 3.6KW Onan LP
Fuel Type Diesel
Engine 2.0L I-4
Chassis Mercedes Benz Sprinter
Horsepower 211 hp
Fuel Capacity 26 gals
Wheelbase 170 in
Available Beds Queen
Torque 332 ft-lb
Refrigerator Type 12V Two Door Compressor Driven
Refrigerator Size 8 cu ft
Convection Cooking Yes
Cooktop Burners 3
Number of Awnings 1
Axle Weight Front 4410 lbs
Axle Weight Rear 7720 lbs
LP Tank Capacity 20.3 gals
Water Heater Type Truma Aqua Go Comfort On Demand
AC BTU 15000 btu
TV Info LR 32" LED Smart TV, BR 32" LED Smart TV
Awning Info 16' Armless w/LED Lighting and Motion Activated Retraction
Gross Combined Weight 15250 lbs
Shower Type Standard
Electrical Service 30 amp
